vendor-mixin¶

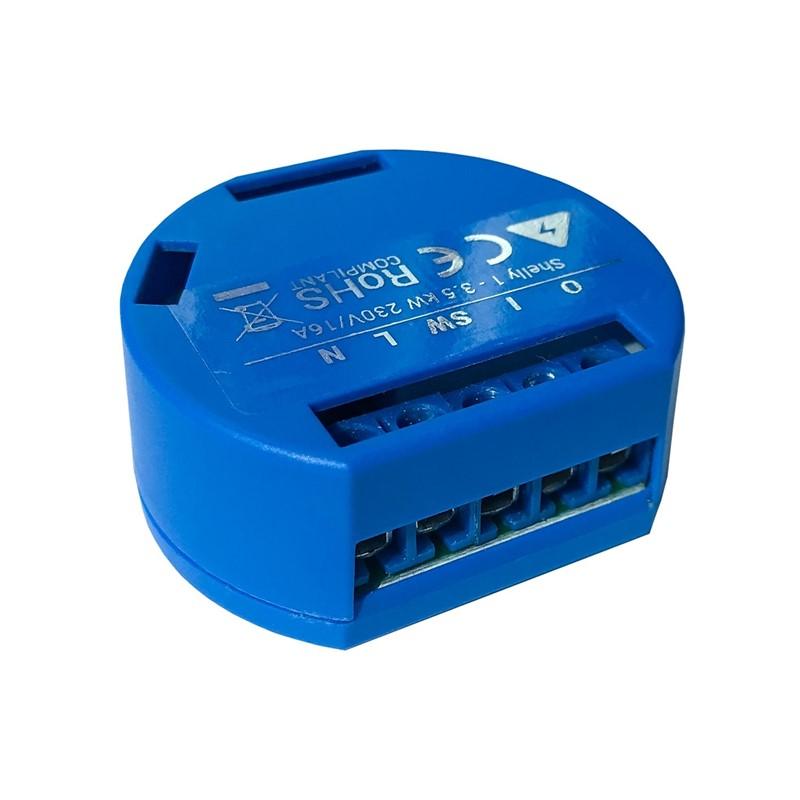

Shelly 1¶
More information¶
- documentation: https://esphome.io/devices/sonoff.html#shelly-1
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
shelly_1_vendor¶
Source configuration:
1 2 3 4 5 | device:
shelly_1_vendor:
board: esp8285
mixins:
- kind: shelly_1
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 | binary_sensor:
- device_class: power
name: shelly_1_vendor_power
on_press:
- switch.toggle: shelly_1_vendor_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO5
platform: gpio
esphome:
board: esp8285
name: shelly_1_vendor
platform: ESP8266
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
switch:
- id: shelly_1_vendor_switch
name: shelly_1_vendor_switch
pin: GPIO4
platform: gpio
|
Shelly 2¶
More information¶
- documentation: https://esphome.io/devices/sonoff.html#shelly-2
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
shelly_2_vendor¶
Source configuration:
1 2 3 4 5 | device:
shelly_2_vendor:
board: esp8285
mixins:
- kind: shelly_2
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 | binary_sensor:
- device_class: power
name: shelly_2_vendor_1_power
on_press:
- switch.toggle: shelly_2_vendor_1_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO12
platform: gpio
- device_class: power
name: shelly_2_vendor_2_power
on_press:
- switch.toggle: shelly_2_vendor_2_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO14
platform: gpio
esphome:
board: esp8285
name: shelly_2_vendor
platform: ESP8266
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
switch:
- id: shelly_2_vendor_1_switch
name: shelly_2_vendor_1_switch
pin: GPIO4
platform: gpio
- id: shelly_2_vendor_2_switch
name: shelly_2_vendor_2_switch
pin: GPIO5
platform: gpio
|

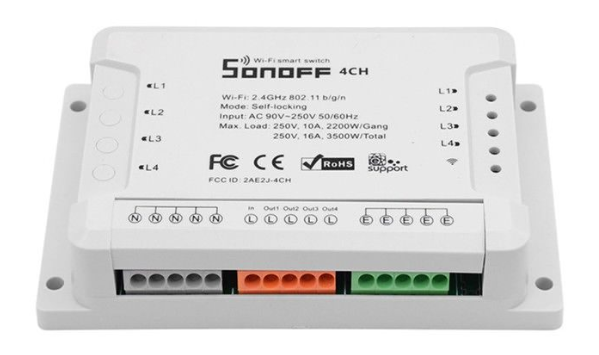

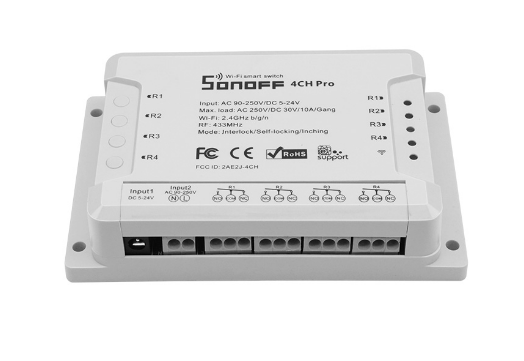

Sonoff 4CH / Sonoff 4CH Pro¶
More information¶
- documentation: https://esphome.io/devices/sonoff_4ch.html
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
sonoff_4ch_pro_vendor¶
Source configuration:
1 2 3 4 5 | device:
sonoff_4ch_pro_vendor:
board: esp8285
mixins:
- kind: sonoff_4ch_pro
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 | binary_sensor:
- device_class: power
name: sonoff_4ch_pro_vendor_1_power
on_press:
- switch.toggle: sonoff_4ch_pro_vendor_1_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO12
platform: gpio
- device_class: power
name: sonoff_4ch_pro_vendor_2_power
on_press:
- switch.toggle: sonoff_4ch_pro_vendor_2_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO5
platform: gpio
- device_class: power
name: sonoff_4ch_pro_vendor_3_power
on_press:
- switch.toggle: sonoff_4ch_pro_vendor_3_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO4
platform: gpio
- device_class: power
name: sonoff_4ch_pro_vendor_4_power
on_press:
- switch.toggle: sonoff_4ch_pro_vendor_4_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO15
platform: gpio
esphome:
board: esp8285
name: sonoff_4ch_pro_vendor
platform: ESP8266
light:
- name: sonoff_4ch_pro_vendor_light
output: sonoff_4ch_pro_vendor_light
platform: monochromatic
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
output:
- id: sonoff_4ch_pro_vendor_light
inverted: true
pin: GPIO13
platform: esp8266_pwm
switch:
- id: sonoff_4ch_pro_vendor_1_switch
name: sonoff_4ch_pro_vendor_1_switch
pin: GPIO0
platform: gpio
- id: sonoff_4ch_pro_vendor_2_switch
name: sonoff_4ch_pro_vendor_2_switch
pin: GPIO9
platform: gpio
- id: sonoff_4ch_pro_vendor_3_switch
name: sonoff_4ch_pro_vendor_3_switch
pin: GPIO10
platform: gpio
- id: sonoff_4ch_pro_vendor_4_switch
name: sonoff_4ch_pro_vendor_4_switch
pin: GPIO14
platform: gpio
|
Sonoff 4CH Pro R2¶
More information¶
- documentation: https://esphome-configs.io/devices/sonoff-4ch-pro-r2/
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
sonoff_4ch_pro_r2_vendor¶
Source configuration:
1 2 3 4 5 | device:
sonoff_4ch_pro_r2_vendor:
board: esp8285
mixins:
- kind: sonoff_4ch_pro_r2
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 | binary_sensor:
- device_class: power
name: sonoff_4ch_pro_r2_vendor_1_power
on_press:
- switch.toggle: sonoff_4ch_pro_r2_vendor_1_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO12
platform: gpio
- device_class: power
name: sonoff_4ch_pro_r2_vendor_2_power
on_press:
- switch.toggle: sonoff_4ch_pro_r2_vendor_2_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO5
platform: gpio
- device_class: power
name: sonoff_4ch_pro_r2_vendor_3_power
on_press:
- switch.toggle: sonoff_4ch_pro_r2_vendor_3_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO4
platform: gpio
- device_class: power
name: sonoff_4ch_pro_r2_vendor_4_power
on_press:
- switch.toggle: sonoff_4ch_pro_r2_vendor_4_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO15
platform: gpio
esphome:
board: esp8285
name: sonoff_4ch_pro_r2_vendor
platform: ESP8266
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
switch:
- id: sonoff_4ch_pro_r2_vendor_1_switch
name: sonoff_4ch_pro_r2_vendor_1_switch
pin: GPIO0
platform: gpio
- id: sonoff_4ch_pro_r2_vendor_2_switch
name: sonoff_4ch_pro_r2_vendor_2_switch
pin: GPIO9
platform: gpio
- id: sonoff_4ch_pro_r2_vendor_3_switch
name: sonoff_4ch_pro_r2_vendor_3_switch
pin: GPIO10
platform: gpio
- id: sonoff_4ch_pro_r2_vendor_4_switch
name: sonoff_4ch_pro_r2_vendor_4_switch
pin: GPIO14
platform: gpio
|

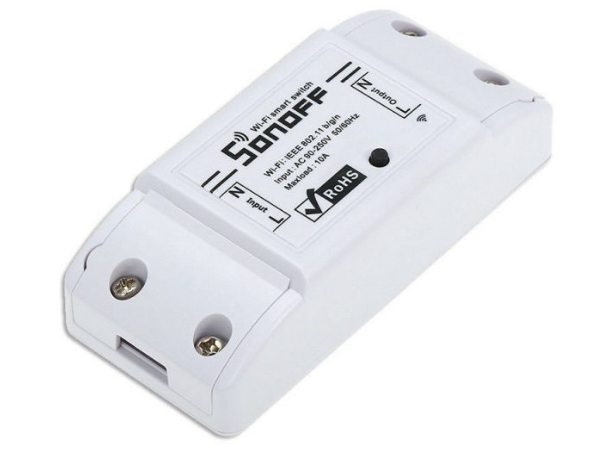

Sonoff Basic¶
More information¶
- documentation: https://esphome.io/devices/sonoff_basic.html
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
sonoff_basic_vendor¶
Source configuration:
1 2 3 4 5 | device:
sonoff_basic_vendor:
board: esp8285
mixins:
- kind: sonoff_basic
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 | binary_sensor:
- device_class: power
name: sonoff_basic_vendor_power
on_press:
- switch.toggle: sonoff_basic_vendor_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO0
platform: gpio
esphome:
board: esp8285
name: sonoff_basic_vendor
platform: ESP8266
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
switch:
- id: sonoff_basic_vendor_switch
name: sonoff_basic_vendor_switch
pin: GPIO12
platform: gpio
|

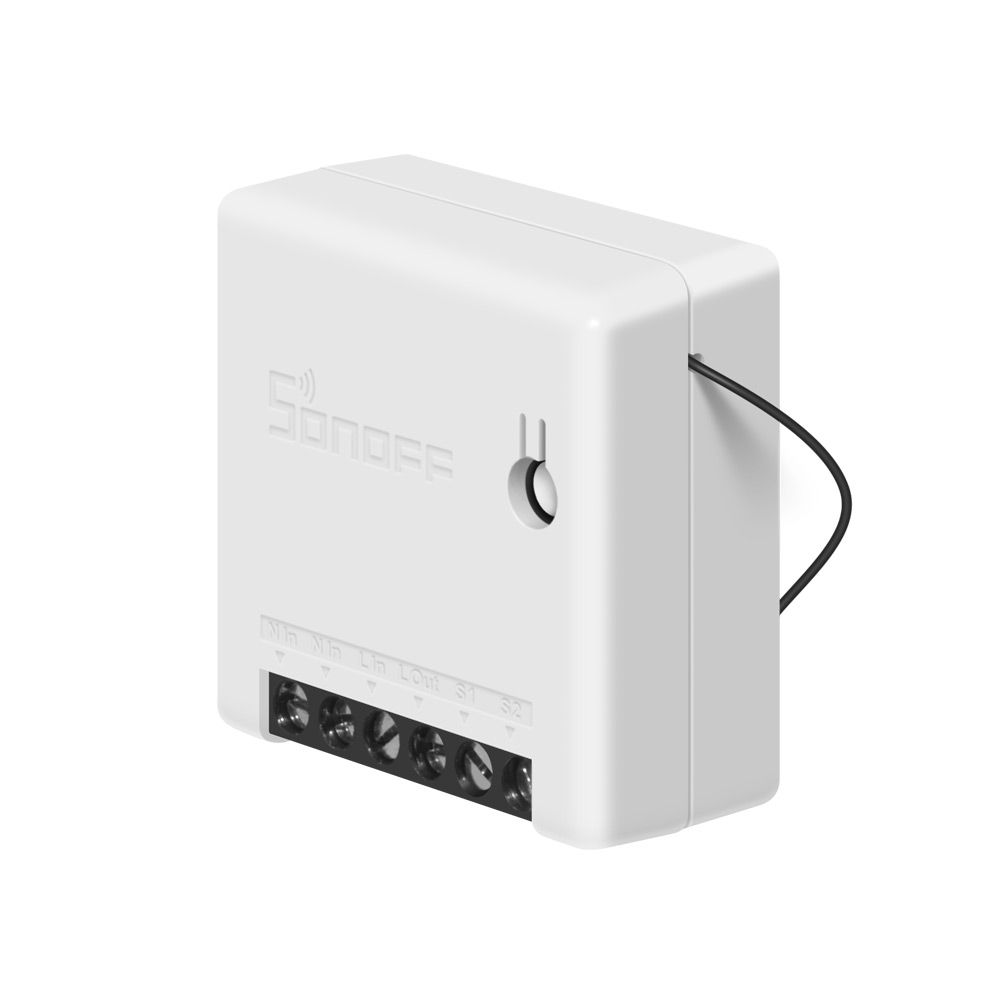

Sonoff Mini¶
More information¶
- documentation: https://esphome.io/devices/sonoff.html#sonoff-mini
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
sonoff_mini_vendor¶
Source configuration:
1 2 3 4 5 | device:
sonoff_mini_vendor:
board: esp8285
mixins:
- kind: sonoff_mini
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 | binary_sensor:
- device_class: power
name: sonoff_mini_vendor_power
on_press:
- switch.toggle: sonoff_mini_vendor_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO0
platform: gpio
esphome:
board: esp8285
name: sonoff_mini_vendor
platform: ESP8266
light:
- name: sonoff_mini_vendor_light
output: sonoff_mini_vendor_light
platform: monochromatic
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
output:
- id: sonoff_mini_vendor_light
inverted: true
pin: GPIO13
platform: esp8266_pwm
switch:
- id: sonoff_mini_vendor_switch
name: sonoff_mini_vendor_switch
pin: GPIO12
platform: gpio
|

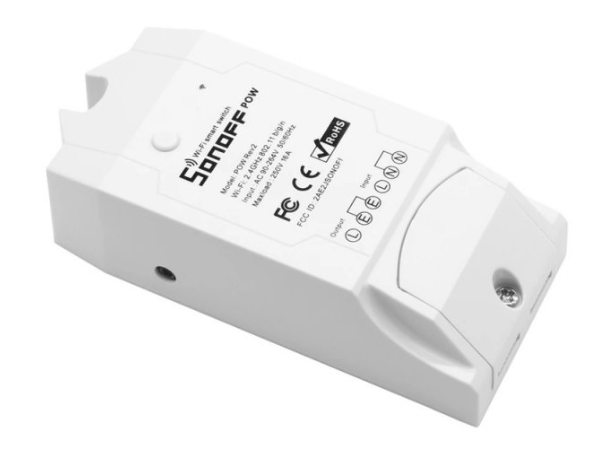

Sonoff Pow R1¶
More information¶
- documentation: https://esphome.io/devices/sonoff.html
Configuration parameters¶
- name: (required) The name of the switch.
Sonoff Pow R2¶
More information¶
- documentation: https://esphome.io/devices/sonoff.html
- documentation: https://esphome.io/components/sensor/cse7766.html
Configuration parameters¶
- name: (required) The name of the switch.

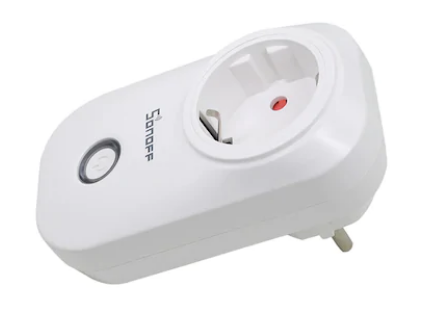

Sonoff S20¶
More information¶
- documentation: https://esphome.io/devices/sonoff_s20.html
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
sonoff_s20_vendor_name¶
Source configuration:
1 2 3 4 5 6 | device:
sonoff_s20_vendor_name:
board: esp8285
mixins:
- kind: sonoff_s20
name: test_plug
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 | binary_sensor:
- device_class: power
name: test_plug_power
on_press:
- switch.toggle: test_plug_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO0
platform: gpio
esphome:
board: esp8285
name: sonoff_s20_vendor_name
platform: ESP8266
light:
- name: test_plug_light
output: test_plug_light
platform: monochromatic
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
output:
- id: test_plug_light
inverted: true
pin: GPIO13
platform: esp8266_pwm
switch:
- id: test_plug_switch
name: test_plug_switch
pin: GPIO12
platform: gpio
|
sonoff_s20_vendor¶
Source configuration:
1 2 3 4 5 | device:
sonoff_s20_vendor:
board: esp8285
mixins:
- kind: sonoff_s20
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 | binary_sensor:
- device_class: power
name: sonoff_s20_vendor_power
on_press:
- switch.toggle: sonoff_s20_vendor_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO0
platform: gpio
esphome:
board: esp8285
name: sonoff_s20_vendor
platform: ESP8266
light:
- name: sonoff_s20_vendor_light
output: sonoff_s20_vendor_light
platform: monochromatic
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
output:
- id: sonoff_s20_vendor_light
inverted: true
pin: GPIO13
platform: esp8266_pwm
switch:
- id: sonoff_s20_vendor_switch
name: sonoff_s20_vendor_switch
pin: GPIO12
platform: gpio
|
Sonoff S22¶
More information¶
- documentation: https://esphome.io/devices/sonoff_s20.html
Configuration parameters¶
- name: (required) The name of the switch.

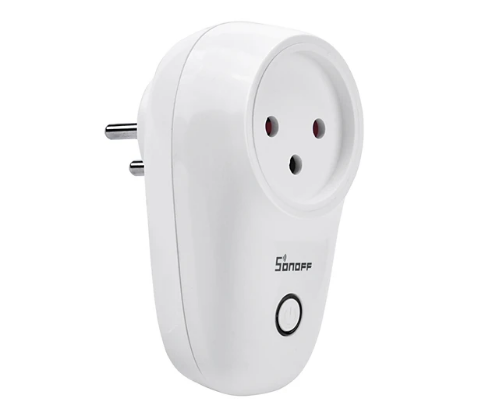

Sonoff S26¶
More information¶
- documentation: https://esphome.io/devices/sonoff_s20.html
Configuration parameters¶
- name: (required) The name of the switch.

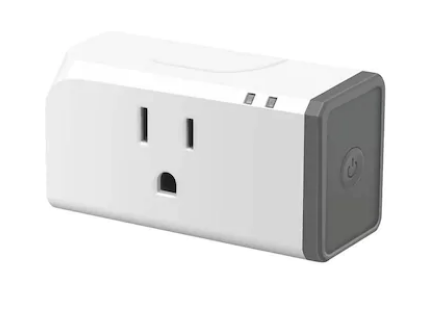

Sonoff S31¶
More information¶
- documentation: https://esphome.io/devices/sonoff.html#sonoff-s31
Configuration parameters¶
- name: (required) The name of the switch.
Sample configurations¶
sonoff_s31_vendor¶
Source configuration:
1 2 3 4 5 | device:
sonoff_s31_vendor:
board: esp8285
mixins:
- kind: sonoff_s31
|
The rendered configuration:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 | binary_sensor:
- device_class: power
name: sonoff_s31_vendor_power
on_press:
- switch.toggle: sonoff_s31_vendor_switch
pin:
inverted: 'yes'
mode: INPUT_PULLUP
number: GPIO0
platform: gpio
esphome:
board: esp8285
name: sonoff_s31_vendor
platform: ESP8266
light:
- name: sonoff_s31_vendor_light
output: sonoff_s31_vendor_light
platform: monochromatic
logger:
esp8266_store_log_strings_in_flash: false
level: DEBUG
output:
- id: sonoff_s31_vendor_light
inverted: true
pin: GPIO13
platform: esp8266_pwm
sensor:
- current:
id: sonoff_s31_vendor_current
name: sonoff_s31_vendor_current
platform: cse7766
power:
id: sonoff_s31_vendor_power
name: sonoff_s31_vendor_power
update_interval: 5s
voltage:
id: sonoff_s31_vendor_voltage
name: sonoff_s31_vendor_voltage
switch:
- id: sonoff_s31_vendor_switch
name: sonoff_s31_vendor_switch
pin: GPIO12
platform: gpio
uart:
baud_rate: 4800
rx_pin: RX
|
