display-mixin

MAX7219 Digit Display

_images/max7219.png

Configuration parameters

  • name: (required) The name of the display.
  • lambda: (required) The lambda to use for rendering the content on the display.
  • num_chips: The number of chips you wish to use for daisy chaining. Defaults to 4.
  • intensity: The intensity with which the MAX7219 should drive the outputs. Range is from 0, least intense to 15 the brightest. Defaults to 15.

Character-Based LCD Display (PCF8574)

_images/hd44780.jpg

This integration is only for LCD displays that display individual characters on a screen (usually 16-20 columns and 2-4 rows), and not for LCD displays that can control each pixel individually.

Configuration parameters

  • name: (required) The name of the display.
  • display_size: (required, string) The dimensions of the display with COLUMNSxROWS. If you’re not sure, power the display up and just count them.
  • address: (required) The I²C address of the PCF8574 chip, defaults to 0x3F.
  • lambda: (required) The lambda to use for rendering the content on the display.
  • pages: (required) Show pages instead of a single lambda.

Sample configurations

pcf8574_display_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  pcf8574_display_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      kind: i2c_bus
      name: i2c_1
    - address: 39
      bus: i2c_1
      display_size: 20x4
      kind: pcf8574_display
      name: display_output

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
display:
- address: 39
  dimensions: 20x4
  id: display_output
  platform: lcd_pcf8574
esphome:
  board: nodemcu-32s
  name: pcf8574_display_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG

SSD1306 OLED Display (I²C)

_images/ssd1306.jpg

These displays are small, only about 1” diagonal, but very readable due to the high contrast of an OLED display. This display is made of 128x32 individual white OLED pixels, each one is turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast. The driver chip SSD1306, communicates via I²C only.

Configuration parameters

  • name: (required) The name of the display.
  • model: (required) The model of the display. Either SSD1306 or SH1106.
  • display_size: (required, string) The dimensions of the display in COLUMNSxROWS. Options 128x32, 128x64, 96x16 and 64x48.
  • address: (required) The I²C address of the display. Defaults to 0x3C.
  • lambda: (required) The lambda to use for rendering the content on the display.
  • pages: (required) Show pages instead of a single lambda.

Sample configurations

ssd1306_i2c_display_128x64_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
device:
  ssd1306_i2c_display_128x64_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      kind: i2c_bus
      name: i2c_1
    - file: ../fonts/OpenSans-Regular.ttf
      kind: ttf_font
      name: opensans
      size: 20
    - cycle_interval: 10s
      display_size: 128x64
      kind: ssd1306_i2c_display
      model: SSD1306
      name: display_output
      pages:
      - id: page1
        lambda: it.print(0, 0, id(opensans), "Hello World!");
      - id: page2
        lambda: it.print(0, 0, id(opensans), "Good Bye!");

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
display:
- address: '0x3C'
  id: display_output
  model: SSD1306 128x64
  pages:
  - id: page1
    lambda: it.print(0, 0, id(opensans), "Hello World!");
  - id: page2
    lambda: it.print(0, 0, id(opensans), "Good Bye!");
  platform: ssd1306_i2c
esphome:
  board: nodemcu-32s
  name: ssd1306_i2c_display_128x64_esp32
  platform: ESP32
font:
- file: ../fonts/OpenSans-Regular.ttf
  id: opensans
  size: 20
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
interval:
- interval: 10s
  then:
  - display.page.show_next: display_output
  - component.update: display_output
logger:
  level: DEBUG

ssd1306_i2c_display_128x32_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
device:
  ssd1306_i2c_display_128x32_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      kind: i2c_bus
      name: i2c_1
    - file: ../fonts/OpenSans-Regular.ttf
      kind: ttf_font
      name: opensans
      size: 20
    - cycle_interval: 10s
      display_size: 128x32
      kind: ssd1306_i2c_display
      model: SSD1306
      name: display_output
      pages:
      - id: page1
        lambda: it.print(0, 0, id(opensans), "Hello World!");
      - id: page2
        lambda: it.print(0, 0, id(opensans), "Good Bye!");

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
display:
- address: '0x3C'
  id: display_output
  model: SSD1306 128x32
  pages:
  - id: page1
    lambda: it.print(0, 0, id(opensans), "Hello World!");
  - id: page2
    lambda: it.print(0, 0, id(opensans), "Good Bye!");
  platform: ssd1306_i2c
esphome:
  board: nodemcu-32s
  name: ssd1306_i2c_display_128x32_esp32
  platform: ESP32
font:
- file: ../fonts/OpenSans-Regular.ttf
  id: opensans
  size: 20
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
interval:
- interval: 10s
  then:
  - display.page.show_next: display_output
  - component.update: display_output
logger:
  level: DEBUG

SSD1325 OLED Display

_images/ssd1325.jpg

These displays are small, only about 1” diagonal, but very readable due to the high contrast of an OLED display. This display is made of 128x32 individual white OLED pixels, each one is turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast. The driver chip SSD1306, communicates via I²C only.

Configuration parameters

  • name: (required) The name of the display.
  • display_size: (required, string) The dimensions of the display in COLUMNSxROWS. Options 128x32, 128x64, 96x16 and 64x48.
  • lambda: (required) The lambda to use for rendering the content on the display.
  • pages: (required) Show pages instead of a single lambda.

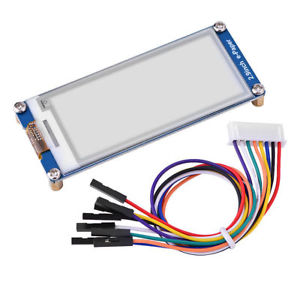

Waveshare E-Paper Display

_images/epaper.jpg

Configuration parameters

  • name: (required) The name of the display.
  • model: (required, string) The model of the E-Paper display. Options are: 1.54in, 2.13in, 2.70in, 2.90in, 4.20in, 7.50in.
  • full_update_every: (required, string) E-Paper displays have two modes of switching to the next image: A partial update that only changes the pixels that have changed and a full update mode that first clears the entire display and then re-draws the image. The former is much quicker and nicer, but every so often a full update needs to happen because artifacts accumulate. On the 1.54in, 2.13in and 2.90in models you have the option to switch only do a full-redraw every x-th time using this option. Defaults to 30 on the described models and a full update for all other models.
  • lambda: (required) The lambda to use for rendering the content on the display.
  • pages: (required) Show pages instead of a single lambda.

Sample configurations

waveshare_epaper_display_pages

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
device:
  waveshare_epaper_display_pages:
    board: nodemcu-32s
    mixins:
    - clk_pin: GPIO18
      kind: spi_bus
      mosi_pin: GPIO23
      name: spi_1
    - file: ../fonts/OpenSans-Regular.ttf
      kind: ttf_font
      name: opensans
      size: 20
    - bus: spi_1
      busy_pin: GPIO4
      cs_pin: GPIO5
      cycle_interval: 30s
      dc_pin: GPIO22
      full_update_every: 3600
      kind: waveshare_epaper_display
      model: 2.90in
      name: display_output
      pages:
      - id: page1
        lambda: it.print(0, 0, id(opensans), "Hello World!");
      - id: page2
        lambda: it.print(0, 0, id(opensans), "Good Bye!");
      reset_pin: GPIO21
      rotation: '90'

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
display:
- busy_pin: GPIO4
  cs_pin: GPIO5
  dc_pin: GPIO22
  full_update_every: 3600
  id: display_output
  model: 2.90in
  pages:
  - id: page1
    lambda: it.print(0, 0, id(opensans), "Hello World!");
  - id: page2
    lambda: it.print(0, 0, id(opensans), "Good Bye!");
  platform: waveshare_epaper
  reset_pin: GPIO21
  rotation: "90\xB0"
esphome:
  board: nodemcu-32s
  name: waveshare_epaper_display_pages
  platform: ESP32
font:
- file: ../fonts/OpenSans-Regular.ttf
  id: opensans
  size: 20
interval:
- interval: 30s
  then:
  - display.page.show_next: display_output
  - component.update: display_output
logger:
  level: DEBUG
spi:
  clk_pin: GPIO18
  mosi_pin: GPIO23

waveshare_epaper_display_basic

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
device:
  waveshare_epaper_display_basic:
    board: nodemcu-32s
    mixins:
    - clk_pin: GPIO18
      kind: spi_bus
      mosi_pin: GPIO23
      name: spi_1
    - file: ../fonts/OpenSans-Regular.ttf
      kind: ttf_font
      name: opensans
      size: 20
    - bus: spi_1
      busy_pin: GPIO4
      cs_pin: GPIO5
      dc_pin: GPIO22
      full_update_every: 3600
      kind: waveshare_epaper_display
      lambda: it.print(0, 0, id(opensans), "Hello World!");
      model: 2.90in
      name: display_output
      reset_pin: GPIO21

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
display:
- busy_pin: GPIO4
  cs_pin: GPIO5
  dc_pin: GPIO22
  full_update_every: 3600
  id: display_output
  lambda: it.print(0, 0, id(opensans), "Hello World!");
  model: 2.90in
  platform: waveshare_epaper
  reset_pin: GPIO21
esphome:
  board: nodemcu-32s
  name: waveshare_epaper_display_basic
  platform: ESP32
font:
- file: ../fonts/OpenSans-Regular.ttf
  id: opensans
  size: 20
logger:
  level: DEBUG
spi:
  clk_pin: GPIO18
  mosi_pin: GPIO23
