sensor-mixin

Text Sensor Parameters (Partial)

Configuration parameters

  • icon: Icon to use for the sensor in the frontend.
  • internal: Mark this component as internal. Internal components will not be exposed to the frontend (like Home Assistant).
  • on_value: (optional, automation) An automation to perform when a new value is published.

Binary Sensor Parameters (Partial)

Configuration parameters

  • device_class: The device class for the sensor. See https://www.home-assistant.io/components/binary_sensor/ for a list of available options.
  • internal: Mark this component as internal. Internal components will not be exposed to the frontend (like Home Assistant).
  • on_press: (optional, automation) An automation to perform when the button is pressed.
  • on_release: (optional, automation) An automation to perform when the button is released.

Numeric Sensor Parameters (Partial)

Configuration parameters

  • unit_of_measurement: (optional, string) Unit of measurement the sensor should advertise its values with.
  • icon: Icon to use for the sensor in the frontend.
  • accuracy_decimals: (optional, int) Accuracy of decimals to use when reporting values.
  • expire_after: Time in which the sensor values should be marked as “expired”.
  • filters: Filters to use for some basic transforming of values.
  • internal: Mark this component as internal. Internal components will not be exposed to the frontend (like Home Assistant).
  • on_value: (optional, automation) An automation to perform when a new value is published.
  • on_value_range: (optional, automation) An automation to perform when a published value transition from outside to a range to inside.
  • on_raw_value: (optional, automation) An automation to perform when a raw value is received that hasn’t passed through any filters.

Numeric Polling Sensor Parameters (Partial)

Configuration parameters

  • update_interval: (optional, string) The interval to check the sensor. Defaults to 60s.
  • unit_of_measurement: (optional, string) Unit of measurement the sensor should advertise its values with.
  • icon: Icon to use for the sensor in the frontend.
  • accuracy_decimals: (optional, int) Accuracy of decimals to use when reporting values.
  • expire_after: Time in which the sensor values should be marked as “expired”.
  • filters: Filters to use for some basic transforming of values.
  • on_value: (optional, automation) An automation to perform when a new value is published.
  • on_value_range: (optional, automation) An automation to perform when a published value transition from outside to a range to inside.
  • on_raw_value: (optional, automation) An automation to perform when a raw value is received that hasn’t passed through any filters.

I²C Device Parameters (Partial)

Configuration parameters

  • bus: ID for this I²C bus if you need multiple I²C buses. Defaults to i2c_1.
  • address: I²C address of the sensor.

ADC Analog To Digital Sensor

The Analog To Digital sensor allows you to use the built-in ADC in your device to measurea voltage on certain pins. On the ESP8266 only pin A0 (GPIO17) supports this. On the ESP32pins GPIO32 through GPIO39 can be used.

More information

Configuration parameters

  • name: (required) The name of the voltage sensor.
  • pin: (required) The pin to measure the voltage on. Or on the ESP8266 alternatively also VCC.
  • attenuation: Specify the ADC attenuation to use. Only on ESP32.

Sample configurations

adc_sensor_chip_vcc

Source configuration:

1
2
3
4
5
6
7
device:
  adc_sensor_chip_vcc:
    board: nodemcuv2
    mixins:
    - kind: adc_sensor
      name: test_sensor
      pin: VCC

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
esphome:
  board: nodemcuv2
  name: adc_sensor_chip_vcc
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- name: test_sensor_voltage
  pin: VCC
  platform: adc
  update_interval: 5s

adc_sensor_multiply_filter

Source configuration:

1
2
3
4
5
6
7
8
9
device:
  adc_sensor_multiply_filter:
    board: nodemcuv2
    mixins:
    - filters:
      - multiply: 3.3
      kind: adc_sensor
      name: test_sensor
      pin: 17

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
esphome:
  board: nodemcuv2
  name: adc_sensor_multiply_filter
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- filters:
  - multiply: 3.3
  name: test_sensor_voltage
  pin: 17
  platform: adc
  update_interval: 5s

adc_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
device:
  adc_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - kind: adc_sensor
      name: test_sensor
      pin: A0

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
esphome:
  board: nodemcuv2
  name: adc_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- name: test_sensor_voltage
  pin: A0
  platform: adc
  update_interval: 5s

AJ-SR04M Ultrasonic Distance Sensor

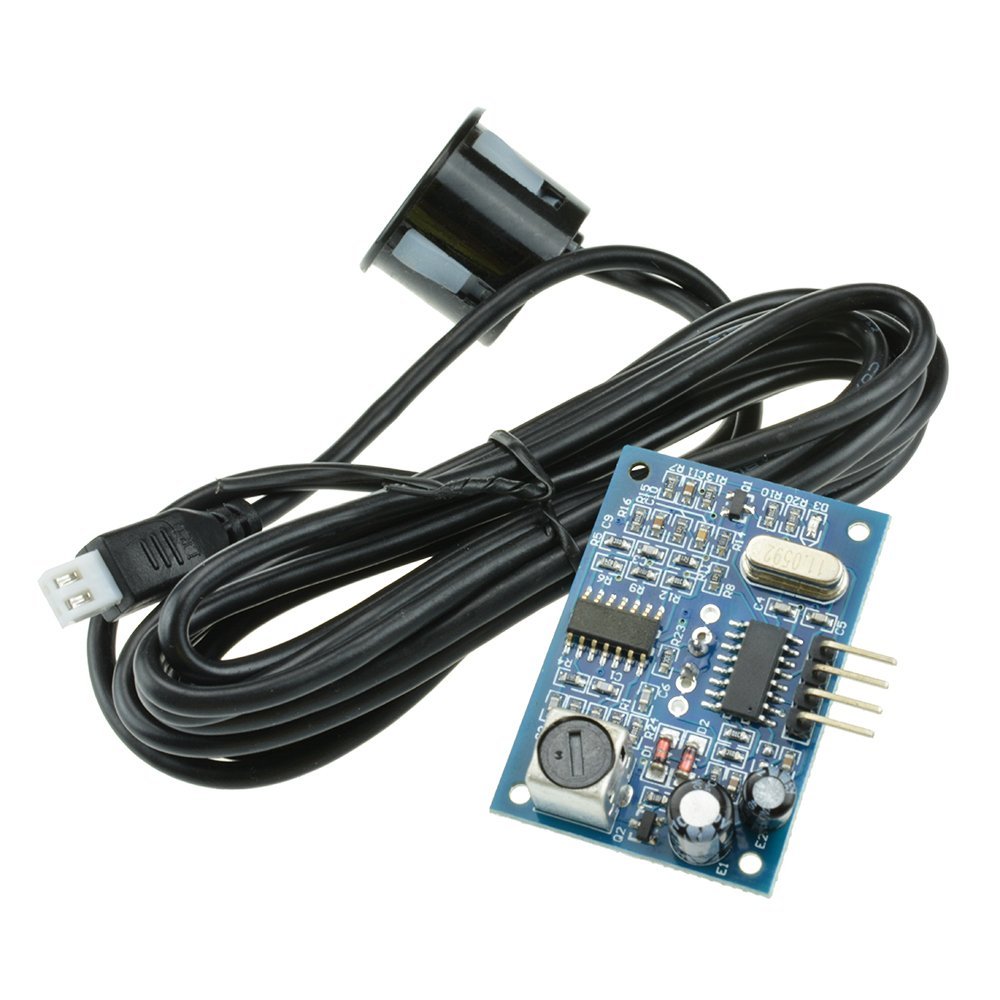

_images/aj-sr04m.jpg

Configuration parameters

  • name: (required) The name of the distance sensor.
  • trigger_pin: (required) The output pin to periodically send the trigger pulse to.
  • echo_pin: (required) The input pin on which to wait for the echo.

Sample configurations

aj_sr04m_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
8
device:
  aj_sr04m_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - echo_pin: D1
      kind: aj_sr04m_sensor
      name: test_sensor
      trigger_pin: D2

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
esphome:
  board: nodemcuv2
  name: aj_sr04m_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- echo_pin: D1
  name: test_sensor_distance
  platform: ultrasonic
  trigger_pin: D2
  update_interval: 5s

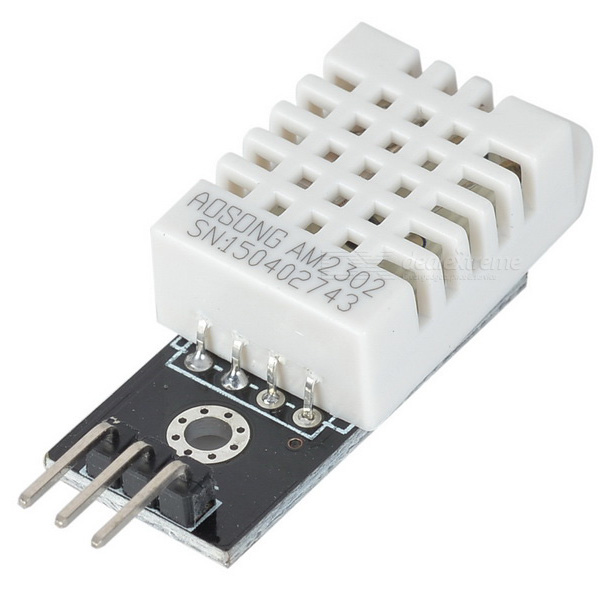

AM2302 Humidity and Temperature Sensor

_images/am2302.jpg

Configuration parameters

  • name: (required) The name of the sensor.
  • pin: (required) The pin where the DHT bus is connected.

Sample configurations

am2302_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
device:
  am2302_sensor_basic_esp8266:
    board: d1_mini_pro
    mixins:
    - kind: am2302_sensor
      name: test_sensor
      pin: D5

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
esphome:
  board: d1_mini_pro
  name: am2302_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- humidity:
    name: test_sensor_humidity
  model: AM2302
  pin: D5
  platform: dht
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

AM2320 Temperature and Humidity Sensor

_images/am2320.jpg

The AM2320 is effectively the latest version of the AM2302 with the addition of an option to communicate over I2C interface. It is physically a little smaller, but with identical pin-out. The one-wire serial of the AM2302 is retained making this a simple drop-in replacement.

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x40.

Sample configurations

am2320_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
device:
  am2320_sensor_basic_esp8266:
    board: d1_mini_pro
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - kind: am2320_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
esphome:
  board: d1_mini_pro
  name: am2320_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x40'
  humidity:
    name: test_sensor_humidity
  platform: am2320
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

BH1750 Ambient Light Sensor

_images/bh1750.jpg

Power supply: 3~5V; Data range: 0-65535; Sensor built-in and 16bitAD converter; Direct digital output, bypassing the complicated calculation, omit calibration; Do not distinguish between ambient light; Close to the visual sensitivity of spectral characteristics; For a wide range of brightness for 1 lux high precision measurement.

Configuration parameters

  • name: (required) The name of the light sensor.
  • resolution: The resolution of the sensor in lx. One of 4.0, 1.0, 0.5. Defaults to 0.5 (the maximum resolution).
  • address: I²C address of the sensor. Defaults to 0x23 (address if address pin is pulled low). If the address pin is pulled high, the address is 0x5C.

Sample configurations

bh1750_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  bh1750_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: bh1750_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
esphome:
  board: nodemcuv2
  name: bh1750_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x23'
  i2c_id: i2c_1
  id: test_sensor_light_intensity
  name: test_sensor_light_intensity
  platform: bh1750
  resolution: '0.5'
  update_interval: 5s

CCS811 CO₂ and Volatile Organic Compound Sensor

_images/ccs811.png _images/ccs811-alt.png

More information

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x5A.

Sample configurations

ccs811_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  ccs811_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: ccs811_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
esphome:
  board: nodemcu-32s
  name: ccs811_sensor_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG
sensor:
- address: '0x5a'
  eco2:
    accuracy_decimals: 1
    id: test_sensor_eco2
    name: test_sensor_eco2
  i2c_id: i2c_1
  platform: ccs811
  tvoc:
    accuracy_decimals: 1
    id: test_sensor_tvoc
    name: test_sensor_tvoc
  update_interval: 5s

ccs811_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  ccs811_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: ccs811_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
esphome:
  board: nodemcuv2
  name: ccs811_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x5a'
  eco2:
    accuracy_decimals: 1
    id: test_sensor_eco2
    name: test_sensor_eco2
  i2c_id: i2c_1
  platform: ccs811
  tvoc:
    accuracy_decimals: 1
    id: test_sensor_tvoc
    name: test_sensor_tvoc
  update_interval: 5s

DS18B20 Temperature Sensor

_images/ds18b20.png _images/ds18b20-wp.png

The DS18B20 is a rather useful sensor because you can read more than one of them using the same GPIO pin. Device is able to recognise the input from each separate sensor.

More information

Configuration parameters

  • name: (required) The name of the sensor.
  • address: (required, int) The address of the sensor.
  • bus: (optional, id) The ID of the dallas hub. Use this if you have multiple dallas hubs.
  • resolution: (optional, int) An optional resolution from 8 to 12. Higher means more accurate. Defaults to the maximum for most Dallas temperature sensors: 12.

Sample configurations

dallas_ds18_sensor_multiple_buses

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
device:
  dallas_ds18_sensor_multiple_buses:
    board: nodemcuv2
    mixins:
    - id: dallas_1
      kind: dallas_bus
      pin: D1
    - id: dallas_2
      kind: dallas_bus
      pin: D2
    - address: 2017612646464694824
      bus: dallas_1
      kind: dallas_ds18_sensor
      name: test_sensor_1
    - address: 2017612646464694808
      bus: dallas_2
      kind: dallas_ds18_sensor
      name: test_sensor_2

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
dallas:
- id: dallas_1
  pin: D1
- id: dallas_2
  pin: D2
esphome:
  board: nodemcuv2
  name: dallas_ds18_sensor_multiple_buses
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: 2017612646464694784
  dallas_id: dallas_1
  name: test_sensor_1
  platform: dallas
  resolution: 12
- address: 2017612646464694784
  dallas_id: dallas_2
  name: test_sensor_2
  platform: dallas
  resolution: 12

dallas_ds18_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  dallas_ds18_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - id: dallas_1
      kind: dallas_bus
      pin: D1
    - address: 2017612646464694824
      bus: dallas_1
      kind: dallas_ds18_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
dallas:
- id: dallas_1
  pin: D1
esphome:
  board: nodemcuv2
  name: dallas_ds18_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: 2017612646464694784
  dallas_id: dallas_1
  name: test_sensor
  platform: dallas
  resolution: 12

dallas_ds18_sensor_multiple_sensors

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
device:
  dallas_ds18_sensor_multiple_sensors:
    board: nodemcuv2
    mixins:
    - id: dallas_1
      kind: dallas_bus
      pin: D1
    - address: 2017612646464694824
      bus: dallas_1
      kind: dallas_ds18_sensor
      name: test_sensor_1
    - address: 2017612646464694808
      bus: dallas_1
      kind: dallas_ds18_sensor
      name: test_sensor_2

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
dallas:
- id: dallas_1
  pin: D1
esphome:
  board: nodemcuv2
  name: dallas_ds18_sensor_multiple_sensors
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: 2017612646464694784
  dallas_id: dallas_1
  name: test_sensor_1
  platform: dallas
  resolution: 12
- address: 2017612646464694784
  dallas_id: dallas_1
  name: test_sensor_2
  platform: dallas
  resolution: 12

DHT11 Humidity and Temperature Sensor

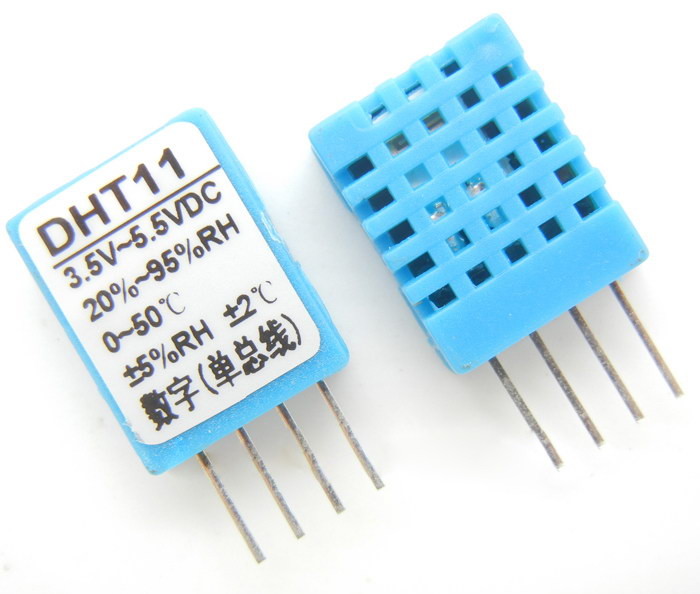

_images/dht11.jpg

The DHT11 is a basic, ultra low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using, sensor readings can be up to 2 seconds old.

More information

Configuration parameters

  • name: (required) The name of the sensor.
  • pin: (required) The pin where the DHT bus is connected.

Sample configurations

dht11_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
device:
  dht11_sensor_basic_esp8266:
    board: d1_mini_pro
    mixins:
    - kind: dht11_sensor
      name: test_sensor
      pin: D5

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
esphome:
  board: d1_mini_pro
  name: dht11_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- humidity:
    name: test_sensor_humidity
  model: DHT11
  pin: D5
  platform: dht
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

DHT22 Humidity and Temperature Sensor

_images/dht22.jpg

The DHT22 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). Compared to the DHT11, this sensor is more precise, more accurate and works in a bigger range of temperature/humidity, but its larger and more expensive.

Configuration parameters

  • name: (required) The name of the sensor.
  • pin: (required) The pin where the DHT bus is connected.

Sample configurations

dht22_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
device:
  dht22_sensor_basic_esp8266:
    board: d1_mini_pro
    mixins:
    - kind: dht22_sensor
      name: test_sensor
      pin: D5

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
esphome:
  board: d1_mini_pro
  name: dht22_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- humidity:
    name: test_sensor_humidity
  model: DHT22
  pin: D5
  platform: dht
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

Atlas-Scientific EZO Dissolved Oxygen Sensor

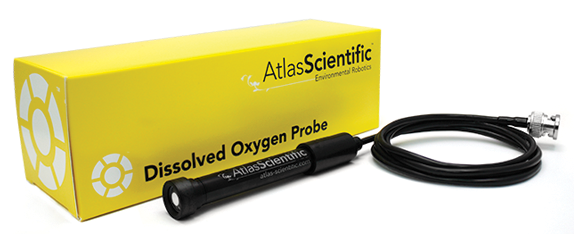

_images/as_do.png

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x63.

Sample configurations

ezo_do_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  ezo_do_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - address: 97
      bus: i2c_1
      kind: ezo_do_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
esphome:
  board: nodemcuv2
  includes:
  - ../includes/ezo_do.h
  libraries:
  - Ezo_I2c_lib
  name: ezo_do_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- lambda: 'auto ezo_do_sensor = new EzoDoSensor(10000, 0x61);

    App.register_component(ezo_do_sensor);

    return {ezo_do_sensor};

    '
  platform: custom
  sensors:
  - accuracy_decimals: 2
    id: test_sensor_dissolved_oxygen
    name: test_sensor_dissolved_oxygen
    unit_of_measurement: mg/L

Atlas-Scientific EZO EC Sensor

_images/as_ec_k1.png

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x64.

Sample configurations

ezo_ec_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  ezo_ec_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - address: 100
      bus: i2c_1
      kind: ezo_ec_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
esphome:
  board: nodemcuv2
  includes:
  - ../includes/ezo_ec.h
  libraries:
  - Ezo_I2c_lib
  name: ezo_ec_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- lambda: "auto ezo_ec_sensor = new EzoEcSensor(10000, 0x64);\nApp.register_component(ezo_ec_sensor);\n\
    return {\n  ezo_ec_sensor->ec_sensor,\n  ezo_ec_sensor->tds_sensor,\n  ezo_ec_sensor->s_sensor,\n\
    \  ezo_ec_sensor->sg_sensor\n};\n"
  platform: custom
  sensors:
  - icon: mdi:flower
    id: test_sensor_electrical_conductivity
    name: test_sensor_electrical_conductivity
    unit_of_measurement: uS/cm
  - id: test_sensor_total_dissolved_solids
    name: test_sensor_total_dissolved_solids
    unit_of_measurement: ppm
  - id: test_sensor_salinity
    name: test_sensor_salinity
    unit_of_measurement: ppt
  - name: test_sensor_specific_gravity
    unit_of_measurement: g/cm3

Atlas-Scientific EZO ORP Sensor

_images/as_orp.jpg

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x62.

Sample configurations

ezo_orp_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  ezo_orp_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - address: 98
      bus: i2c_1
      kind: ezo_orp_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
esphome:
  board: nodemcuv2
  includes:
  - ../includes/ezo_orp.h
  libraries:
  - Ezo_I2c_lib
  name: ezo_orp_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- lambda: 'auto ezo_orp_sensor = new EzoOrpSensor(10000, 0x62);

    App.register_component(ezo_orp_sensor);

    return {ezo_orp_sensor};

    '
  platform: custom
  sensors:
  - accuracy_decimals: 2
    id: test_sensor_orp
    name: test_sensor_orp
    unit_of_measurement: mV

Atlas-Scientific EZO pH Sensor

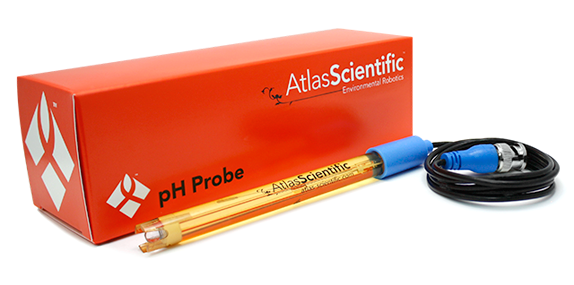

_images/as_ph.png _images/as_spear_tip_ph.png

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x63.

Sample configurations

ezo_ph_sensor_temp_comp

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  ezo_ph_sensor_temp_comp:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - address: 99
      bus: i2c_1
      kind: ezo_ph_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
esphome:
  board: nodemcuv2
  includes:
  - ../includes/ezo_ph.h
  libraries:
  - Ezo_I2c_lib
  name: ezo_ph_sensor_temp_comp
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- lambda: 'auto ezo_ph_sensor = new EzoPhSensor(10000, 0x63);

    App.register_component(ezo_ph_sensor);

    return {ezo_ph_sensor};

    '
  platform: custom
  sensors:
  - accuracy_decimals: 2
    id: test_sensor_ph
    name: test_sensor_ph
    unit_of_measurement: ''

ezo_ph_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  ezo_ph_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      id: i2c_1
      kind: i2c_bus
    - address: 99
      bus: i2c_1
      kind: ezo_ph_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
esphome:
  board: nodemcu-32s
  includes:
  - ../includes/ezo_ph.h
  libraries:
  - Ezo_I2c_lib
  name: ezo_ph_sensor_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG
sensor:
- lambda: 'auto ezo_ph_sensor = new EzoPhSensor(10000, 0x63);

    App.register_component(ezo_ph_sensor);

    return {ezo_ph_sensor};

    '
  platform: custom
  sensors:
  - accuracy_decimals: 2
    id: test_sensor_ph
    name: test_sensor_ph
    unit_of_measurement: ''

ezo_ph_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  ezo_ph_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - address: 99
      bus: i2c_1
      kind: ezo_ph_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
esphome:
  board: nodemcuv2
  includes:
  - ../includes/ezo_ph.h
  libraries:
  - Ezo_I2c_lib
  name: ezo_ph_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- lambda: 'auto ezo_ph_sensor = new EzoPhSensor(10000, 0x63);

    App.register_component(ezo_ph_sensor);

    return {ezo_ph_sensor};

    '
  platform: custom
  sensors:
  - accuracy_decimals: 2
    id: test_sensor_ph
    name: test_sensor_ph
    unit_of_measurement: ''

GPIO Binary Sensor

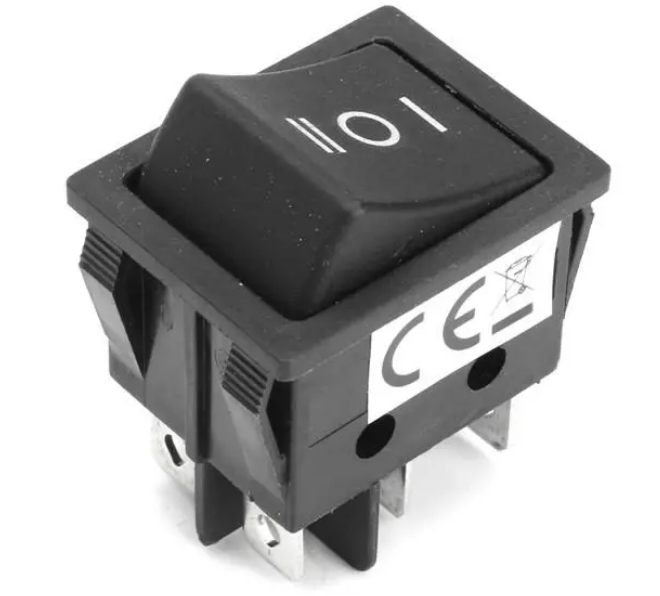

_images/button-01.png _images/button-02.png

Configuration parameters

  • name: (required) The name of the distance sensor.
  • pin: (required) The pin to periodically check.

Sample configurations

gpio_binary_sensor_debounce_on_filter

Source configuration:

1
2
3
4
5
6
7
8
9
device:
  gpio_binary_sensor_debounce_on_filter:
    board: nodemcuv2
    mixins:
    - filters:
      - delayed_on: 10ms
      kind: gpio_binary_sensor
      name: test_sensor
      pin: 17

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
binary_sensor:
- name: test_sensor_sensor
  pin:
    number: 17
  platform: gpio
esphome:
  board: nodemcuv2
  name: gpio_binary_sensor_debounce_on_filter
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG

gpio_binary_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
device:
  gpio_binary_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - kind: gpio_binary_sensor
      name: test_sensor
      pin: D1

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
binary_sensor:
- name: test_sensor_sensor
  pin:
    number: D1
  platform: gpio
esphome:
  board: nodemcuv2
  name: gpio_binary_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG

HC-SR04 Ultrasonic Distance Sensor

_images/hc-sr04.png

Configuration parameters

  • name: (required) The name of the distance sensor.
  • trigger_pin: (required) The output pin to periodically send the trigger pulse to.
  • echo_pin: (required) The input pin on which to wait for the echo.

Sample configurations

sr04_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
8
device:
  sr04_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - echo_pin: D1
      kind: hc_sr04_sensor
      name: test_sensor
      trigger_pin: D2

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
esphome:
  board: nodemcuv2
  name: sr04_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- echo_pin: D1
  name: test_sensor_distance
  platform: ultrasonic
  trigger_pin: D2
  update_interval: 5s

HDC1080 Temperature and Humidity Sensor

_images/hdc1080.png

This I2C digital humidity sensor is a fairly accurate and intelligent alternative to the much simpler Humidity and Temperature Sensor - SHT15 Breakout It has a typical accuracy of ±4% with an operating range that’s optimized from 10% to 80% RH. Operation outside this range is still possible - just the accuracy might drop a bit. The temperature output has a typical accuracy of ±0.2°C from -20~85°C.

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x40 with possible 0x41, 0x42 or 0x43.

Sample configurations

hdc1080_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  hdc1080_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: hdc1080_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
esphome:
  board: nodemcuv2
  name: hdc1080_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x40'
  humidity:
    name: test_sensor_humidity
  i2c_id: i2c_1
  platform: hdc1080
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

HTU21D Temperature and Humidity Sensor

_images/htu21d.jpg

This I²C digital humidity sensor is an accurate and intelligent alternative to the much simpler Humidity and Temperature Sensor - SHT15 Breakout It has a typical accuracy of ±2% with an operating range that’s optimized from 5% to 95% RH. Operation outside this range is still possible - just the accuracy might drop a bit. The temperature output has an accuracy of ±1°C from -30~90°C.

More information

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x40.

Sample configurations

htu21d_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  htu21d_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: htu21d_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
esphome:
  board: nodemcuv2
  name: htu21d_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x40'
  humidity:
    name: test_sensor_humidity
  i2c_id: i2c_1
  platform: htu21d
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

htu21d_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  htu21d_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: htu21d_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
esphome:
  board: nodemcu-32s
  name: htu21d_sensor_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG
sensor:
- address: '0x40'
  humidity:
    name: test_sensor_humidity
  i2c_id: i2c_1
  platform: htu21d
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

INA219 DC Current Sensor

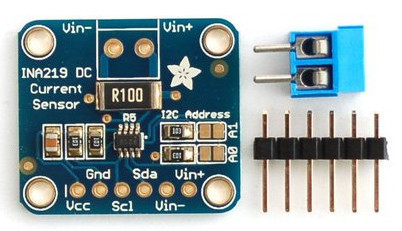

_images/ina219.jpg

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x40.
  • max_voltage: The maximum bus voltage you are expecting. Defaults to 32V (the max).
  • max_voltage: The maximum current you are expecting. Defaults to 3.2A.

Sample configurations

ina219_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  ina219_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: ina219_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
esphome:
  board: nodemcuv2
  name: ina219_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x40'
  bus_voltage:
    name: test_sensor_bus_voltage
  current:
    name: test_sensor_current
  i2c_id: i2c_1
  platform: ina219
  power:
    name: test_sensor_power
  shunt_voltage:
    name: test_sensor_shunt_voltage
  update_interval: 5s

ina219_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  ina219_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: ina219_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
esphome:
  board: nodemcu-32s
  name: ina219_sensor_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG
sensor:
- address: '0x40'
  bus_voltage:
    name: test_sensor_bus_voltage
  current:
    name: test_sensor_current
  i2c_id: i2c_1
  platform: ina219
  power:
    name: test_sensor_power
  shunt_voltage:
    name: test_sensor_shunt_voltage
  update_interval: 5s

MAX6675 K-Type Thermocouple Temperature Sensor

_images/max6675.png

SPI driver for MAX6675 thermocouple temperature sensor.

More information

Configuration parameters

  • name: (required) The name for the temperature sensor.
  • cs_pin: (required) The Chip Select pin of the SPI interface.

Sample configurations

max6675_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
device:
  max6675_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clk_pin: D1
      id: spi_1
      kind: spi_bus
      miso_pin: D0
    - bus: spi_1
      cs_pin: D2
      kind: max6675_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
esphome:
  board: nodemcuv2
  name: max6675_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- cs_pin: D2
  name: test_sensor_temperature
  platform: max6675
  spi_id: spi_1
  update_interval: 5s
spi:
  clk_pin: D1
  miso_pin: D0

MCP9808 Temperature Sensor

_images/mcp9808.jpg

Configuration parameters

  • name: (required) The name of the temperature sensor.

MH-Z19 CO₂ and Temperature Sensor

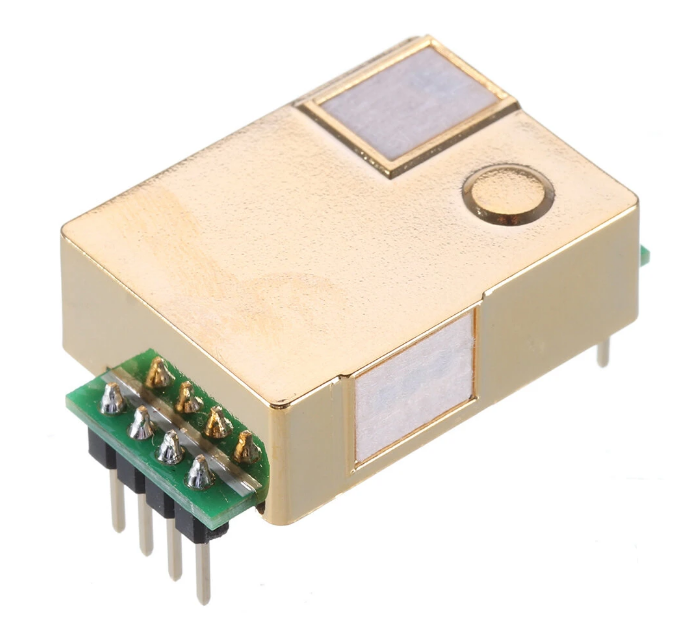

_images/mhz19.png

This sensor gives a digital (serial) output of the CO2 concentration in air, in parts-per-million (ppm). It uses the optical measurement principle of measuring CO2, which should be much more accurate than the inexpensive electro-chemical sensors you can find.

More information

Configuration parameters

  • name: (required) The name of the sensor.
  • automatic_baseline_calibration: MH-Z19 has automatic calibration procedure. The automatic calibration cycle is every 24 hours after powered on. Set this value to false to disable ABC on boot (it’s better if you use sensor indoor). Set this value to true to enable ABC on boot.

Sample configurations

mhz19_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
device:
  mhz19_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - id: uart_1
      kind: uart_bus
      rx_pin: D0
      tx_pin: D1
    - automatic_baseline_calibration: false
      bus: uart_1
      kind: mhz19_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
esphome:
  board: nodemcuv2
  name: mhz19_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- automatic_baseline_calibration: false
  co2:
    accuracy_decimals: 1
    name: test_sensor_co2
  platform: mhz19
  temperature:
    accuracy_decimals: 1
    name: test_sensor_temperature
  update_interval: 5s
uart:
  baud_rate: 9600
  rx_pin: D0
  tx_pin: D1

PN532 NFC/RFID Sensor

_images/pn532.png

Using the PN532 binary sensors you can then create individual binary sensors that track if an NFC/RFID tag is currently detected by the PN532.

Configuration parameters

  • name: (required) The name of the RDIF sensor.
  • cs_pin: (required) The pin on the ESP that the chip select line is connected to.
  • on_tag: An automation to perform when a tag is read.
  • tags.name: (required) The name of the RDIF tag.
  • tags.uid: (required) The name of the RDIF tag.

Sample configurations

pn532_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
device:
  pn532_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clk_pin: D1
      id: spi_1
      kind: spi_bus
      miso_pin: D0
    - bus: spi_1
      cs_pin: D2
      kind: pn532_sensor
      name: test_sensor
      tags:
      - name: tag-01
        uid: 74-10-37-94
      - name: tag-02
        uid: 34-5s7-32-10

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
binary_sensor:
- id: tag-01
  name: tag-01
  platform: pn532
  uid: 74-10-37-94
- id: tag-02
  name: tag-02
  platform: pn532
  uid: 34-5s7-32-10
esphome:
  board: nodemcuv2
  name: pn532_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
pn532:
  cs_pin: D2
  id: test_sensor
  platform: pn532
  spi_id: spi_1
  update_interval: 5s
spi:
  clk_pin: D1
  miso_pin: D0

Rotary Encoder Sensor

_images/rotary_encoder.png

Configuration parameters

  • name: (required) The name of the sensor.
  • pin_a: (required) The first pin for determining the step value. Must not be a pin from an external I/O expander.
  • pin_b: (required) The second pin for determining the step value. Must not be a pin from an external I/O expander.
  • pin_reset: An optional pin that resets the step value. This is useful with rotary encoders that have have a third pin. Defaults to no reset pin.
  • resolution: The resolution of the sensor, this controls how many pulses are generated by one step: 1 (default), 2 and 4.
  • min_value: The minimum value this rotary encoder will go to, turning the knob further will not decrease the number. Defaults to no minimum.
  • max_value: The maximum value this rotary encoder will go to, turning the knob further will not increase the number. Defaults to no maximum.

Sample configurations

rotary_encoder_sensor_basic_esp8266

Source configuration:

1
2
3
4
5
6
7
8
9
device:
  rotary_encoder_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - kind: rotary_encoder_sensor
      name: test_sensor
      pin_a: D1
      pin_b: D2
      pin_reset: D3

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
esphome:
  board: nodemcuv2
  name: rotary_encoder_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- name: test_sensor
  pin_a: D1
  pin_b: D2
  pin_reset: D3
  platform: rotary_encoder
  update_interval: 5s

rotary_encoder_sensor_advanced_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  rotary_encoder_sensor_advanced_esp8266:
    board: nodemcuv2
    mixins:
    - kind: rotary_encoder_sensor
      max_value: 100
      min_value: 20
      name: test_sensor
      pin_a: D1
      pin_b: D2
      pin_reset: D3

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
esphome:
  board: nodemcuv2
  name: rotary_encoder_sensor_advanced_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- max_value: 100
  min_value: 20
  name: test_sensor
  pin_a: D1
  pin_b: D2
  pin_reset: D3
  platform: rotary_encoder
  update_interval: 5s

SCD30 CO₂, Temperature and Humidity Sensor

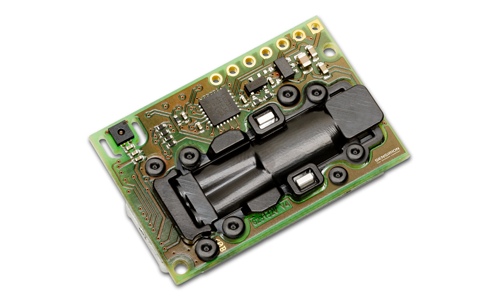

_images/sdc30.png

Sensirion SCD30 Sensor Module uses NDIR CO2 sensor technology to sense CO2 and has an integrated temperature and humidity sensor. Ambient humidity and temperature can be measured by monitoring and compensating of external heat sources without the need for additional components. The small module height allows easy integration into different applications. The SCD30 features dual-channel detection for superior stability and ±30ppm + 3% accuracy.

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x61.

Sample configurations

scd30_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  scd30_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: D5
      data_pin: D4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: scd30_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
esphome:
  board: nodemcuv2
  name: scd30_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: D5
  sda: D4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x61'
  co2:
    accuracy_decimals: 1
    id: test_sensor_co2
    name: test_sensor_co2
  humidity:
    accuracy_decimals: 1
    id: test_sensor_humidity
    name: test_sensor_humidity
  i2c_id: i2c_1
  platform: scd30
  temperature:
    accuracy_decimals: 2
    id: test_sensor_temperature
    name: test_sensor_temperature
  update_interval: 5s

scd30_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  scd30_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: scd30_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
esphome:
  board: nodemcu-32s
  name: scd30_sensor_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG
sensor:
- address: '0x61'
  co2:
    accuracy_decimals: 1
    id: test_sensor_co2
    name: test_sensor_co2
  humidity:
    accuracy_decimals: 1
    id: test_sensor_humidity
    name: test_sensor_humidity
  i2c_id: i2c_1
  platform: scd30
  temperature:
    accuracy_decimals: 2
    id: test_sensor_temperature
    name: test_sensor_temperature
  update_interval: 5s

SDS011 Particulate Matter Sensor

_images/sds011.png

Configuration parameters

  • name: (required) The name of the sensor.

Sample configurations

sds011_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  sds011_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - id: uart_1
      kind: uart_bus
      rx_pin: GPIO3
      tx_pin: GPIO1
    - bus: uart_1
      kind: sds011_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
esphome:
  board: nodemcu-32s
  name: sds011_sensor_basic_esp32
  platform: ESP32
logger:
  level: DEBUG
sensor:
- platform: sds011
  pm_10_0:
    id: test_sensor_pm_10
    name: test_sensor_pm_10
  pm_2_5:
    id: test_sensor_pm_2_5
    name: test_sensor_pm_2_5
  update_interval: 5s
uart:
  baud_rate: 9600
  rx_pin: GPIO3
  tx_pin: GPIO1

sds011_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  sds011_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - id: uart_1
      kind: uart_bus
      rx_pin: GPIO3
      tx_pin: GPIO1
    - bus: uart_1
      kind: sds011_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
esphome:
  board: nodemcuv2
  name: sds011_sensor_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- platform: sds011
  pm_10_0:
    id: test_sensor_pm_10
    name: test_sensor_pm_10
  pm_2_5:
    id: test_sensor_pm_2_5
    name: test_sensor_pm_2_5
  update_interval: 5s
uart:
  baud_rate: 9600
  rx_pin: GPIO3
  tx_pin: GPIO1

SGP30 CO₂ and Volatile Organic Compound Sensor

_images/sgp30.png

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x58.

Sample configurations

sgp30_sensor_basic_esp32

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  sgp30_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - clock_pin: GPIO22
      data_pin: GPIO21
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: sgp30_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
esphome:
  board: nodemcu-32s
  name: sgp30_sensor_basic_esp32
  platform: ESP32
i2c:
- id: i2c_1
  scan: true
  scl: GPIO22
  sda: GPIO21
logger:
  level: DEBUG
sensor:
- address: '0x58'
  eco2:
    accuracy_decimals: 1
    id: test_sensor_eco2
    name: test_sensor_eco2
  i2c_id: i2c_1
  platform: sgp30
  tvoc:
    accuracy_decimals: 1
    id: test_sensor_tvoc
    name: test_sensor_tvoc
  update_interval: 5s

sgp30_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  sgp30_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: sgp30_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
esphome:
  board: nodemcuv2
  name: sgp30_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x58'
  eco2:
    accuracy_decimals: 1
    id: test_sensor_eco2
    name: test_sensor_eco2
  i2c_id: i2c_1
  platform: sgp30
  tvoc:
    accuracy_decimals: 1
    id: test_sensor_tvoc
    name: test_sensor_tvoc
  update_interval: 5s

SHT3X-D Temperature and Humidity Sensor

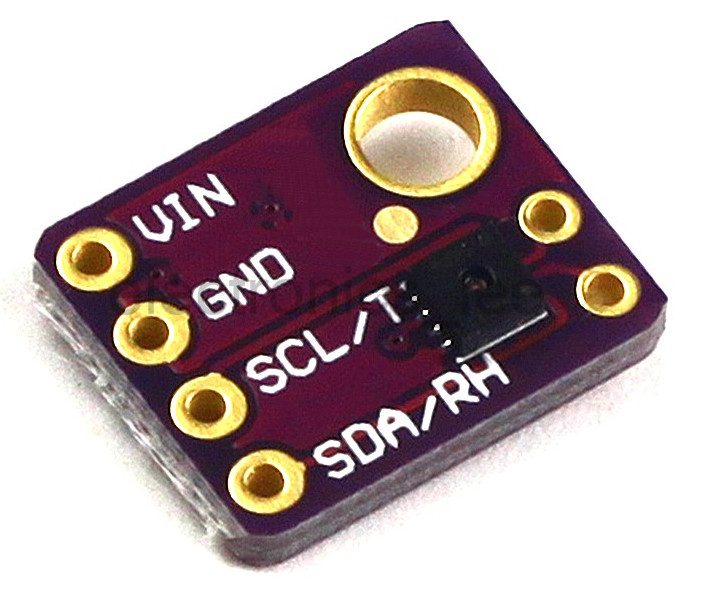

_images/sht3x.jpg

Sensirion Temperature/Humidity sensors are some of the finest & highest-accuracy devices you can get. And, finally we have some that have a true I2C interface for easy reading. The SHT31-D sensor has an excellent ±2% relative humidity and ±0.3°C accuracy for most uses. We now use the version with a PTFE filter, it’ll stay clean while still allowing humidity measurements to work.

Configuration parameters

  • name: (required) The name of the sensor.
  • address: I²C address of the sensor. Defaults to 0x44 or optinal 0x45.

Sample configurations

sht3x_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  sht3x_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: sht3x_sensor
      name: test_sensor

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
esphome:
  board: nodemcuv2
  name: sht3x_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x44'
  humidity:
    name: test_sensor_humidity
  i2c_id: i2c_1
  platform: sht3xd
  temperature:
    name: test_sensor_temperature
  update_interval: 5s

SPW2430 MEMS Sound Sensor

_images/spw2430.jpg

The SPW2430 is a small, low cost MEMS mic with a range of 100Hz - 10KHz, good for just about all general audio recording/detection. The output peak-to-peak voltage has a 0.67V DC bias and about 100mVpp (peak-to-peak) when talking near the microphone, which is good for attaching to something that expects ‘line level’ input without clipping. The peak-to-peak can be as high as 1Vpp if there’s a very loud sound.

Configuration parameters

  • name: (required) The name of the sensor.
  • pin: (required) The pin to measure the voltage on.
  • attenuation: Specify the ADC attenuation to use. Only on ESP32.

Sample configurations

spw2430_sensor_basic_esp32

Source configuration:

1
2
3
4
5
6
7
device:
  spw2430_sensor_basic_esp32:
    board: nodemcu-32s
    mixins:
    - kind: spw2430_sensor
      name: test_sensor
      pin: GPIO22

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
esphome:
  board: nodemcu-32s
  name: spw2430_sensor_basic_esp32
  platform: ESP32
logger:
  level: DEBUG
sensor:
- id: test_sensor_sound_level
  name: test_sensor_sound_level
  pin: GPIO22
  platform: adc
  update_interval: 5s

TEMT6000 Ambient Light Sensor

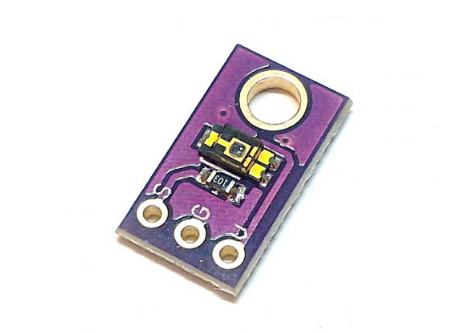

_images/temt6000.png

The TEMT6000 is a simple and cheap ambient light sensor. The sensor itself changes its resistance based on how much light hits the sensor.

More information

Configuration parameters

  • name: (required) The name of the sensor.
  • pin: (required) The pin to measure the voltage on.

TSL2561 Ambient Light Sensor

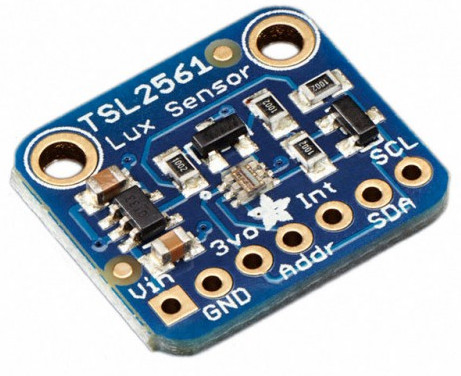

_images/tls2561.jpg

The TSL2561 luminosity sensor is an advanced digital light sensor, ideal for use in a wide range of light situations. Compared to low cost CdS cells, this sensor is more precise, allowing for exact lux calculations and can be configured for different gain/timing ranges to detect light ranges from up to 0.1 - 40,000+ Lux on the fly. The best part of this sensor is that it contains both infrared and full spectrum diodes! That means you can separately measure infrared, full-spectrum or human-visible light. Most sensors can only detect one or the other, which does not accurately represent what human eyes see (since we cannot perceive the IR light that is detected by most photo diodes).

More information

Configuration parameters

  • name: (required) The name of the light sensor.
  • integration_time: (optional, time) The time the sensor will take for each measurement. Longer means more accurate values. One of 14ms, 101ms, 402ms. Defaults to 402ms.
  • gain: (optional, string) The gain of the sensor. Higher values are better in low-light conditions. One of 1x and 16x. Defaults to 1x.
  • is_cs_package: (optional, boolean) The “CS” package of this sensor has a slightly different formula for calculating the illuminance in lx. Set to true if you’re working with a CS package. Defaults to false.
  • address: I²C address of the sensor. Defaults to 0x39.

Sample configurations

tsl2561_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
device:
  tsl2561_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: tsl2561_sensor
      name: test_sensor
      update_interval: 10s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
esphome:
  board: nodemcuv2
  name: tsl2561_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- address: '0x39'
  i2c_id: i2c_1
  name: test_sensor_light_intensity
  platform: tsl2561
  update_interval: 10s

TSL2591 Ambient Light Sensor

_images/tls2591.jpg

The TSL2591 luminosity sensor is an advanced digital light sensor, ideal for use in a wide range of light situations. Compared to low cost CdS cells, this sensor is more precise, allowing for exact lux calculations and can be configured for different gain/timing ranges to detect light ranges from 188 uLux up to 88,000 Lux on the fly.The best part of this sensor is that it contains both infrared and full spectrum diodes! That means you can separately measure infrared, full-spectrum or human-visible light. Most sensors can only detect one or the other, which does not accurately represent what human eyes see (since we cannot perceive the IR light that is detected by most photo diodes) This sensor is much like the TSL2561 but with a wider range (and the interface code is different). This sensor has a massive 600,000,000:1 dynamic range! Unlike the TSL2561 you cannot change the I²C address, so keep that in mind. This board/chip uses I²C 7-bit address 0x29.

Configuration parameters

  • name: (required) The name of the light sensor.
  • address: I²C address of the sensor.

Sample configurations

tsl2591_sensor_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
device:
  tsl2591_sensor_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: GPIO5
      data_pin: GPIO4
      id: i2c_1
      kind: i2c_bus
    - bus: i2c_1
      kind: tsl2591_sensor
      name: test_sensor
      update_interval: 5s

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
esphome:
  board: nodemcuv2
  includes:
  - ../includes/tsl2591.h
  libraries:
  - Adafruit TSL2591 Library
  - Adafruit Unified Sensor
  name: tsl2591_sensor_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: GPIO5
  sda: GPIO4
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
sensor:
- lambda: 'auto tsl2591_sensor = new TSL2591Sensor(5000);

    App.register_component(tsl2591_sensor);

    return {tsl2591_sensor};

    '
  platform: custom
  sensors:
  - accuracy_decimals: 2
    name: test_sensor_light_intensity
    unit_of_measurement: lx

VL53L0X Time Of Flight Distance Sensor

_images/vl53l0x.jpg

More information

Configuration parameters

  • name: (required) The name of the distance sensor.
  • address: I²C address of the sensor. Defaults to 0x29.

Xiaomi Mi Flora Sensor

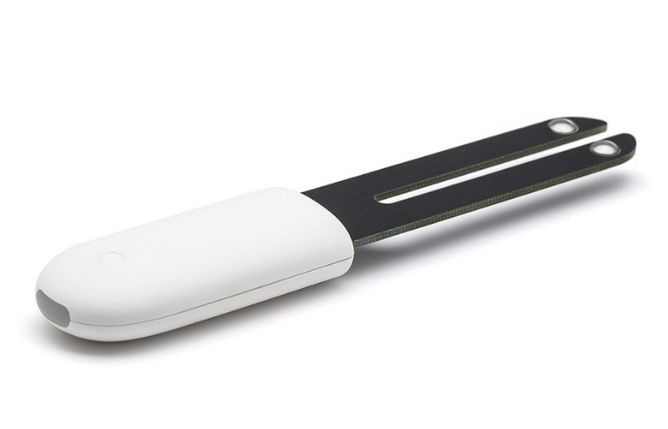

_images/mi_flora.png

Configuration parameters

  • name: (required) The name of the device.
  • mac_address: (required) The MAC address of the Xiaomi HHCCJCY01 device.
