actuator-mixin

Generic Servo Motor (Partial)

Configuration parameters

  • name: (required) The name of the servo.
  • min_level: The PWM duty cycle the minimum value (-100%) will map to. Defaults to 3%.
  • max_level: The PWM duty cycle the maximum value (100%) will map to. Defaults to 12.0%.
  • idle_level: The PWM duty cycle the idle value (0%) will map to. This is also the state of the servo at startup. Defaults to 7.5%.
  • restore: Whether to restore the state of the servo motor at startup. This is useful if you have an absolute servo motor and it goes back to its 0 position at startup. Defaults to false.

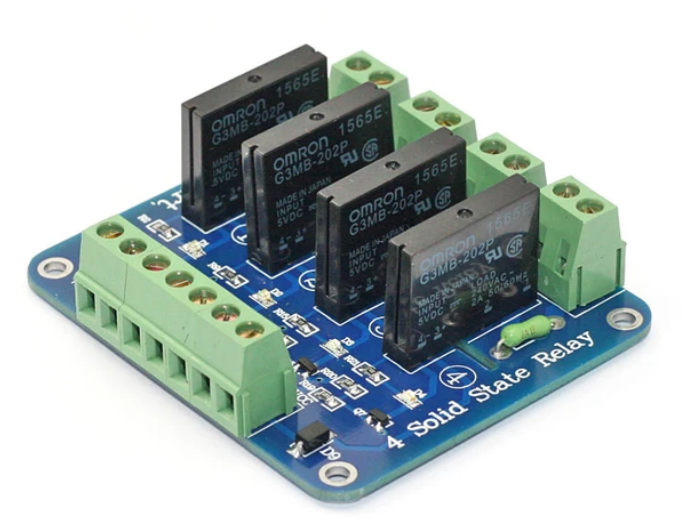

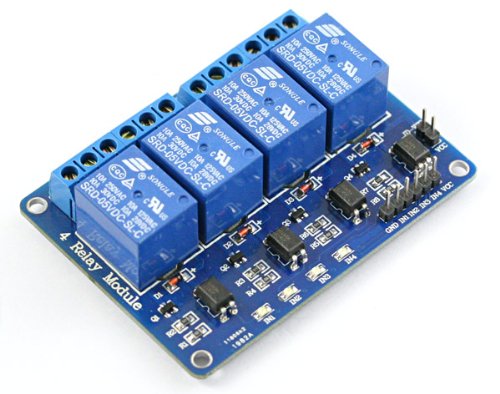

GPIO Relay Switch

_images/relay.jpg _images/relay-solid-state.png

More information

Configuration parameters

  • name: (required) The name of the switch.
  • pin: (required) The GPIO pin to use for the switch.

Sample configurations

gpio_relay_switch_basic

Source configuration:

1
2
3
4
5
6
7
device:
  gpio_relay_switch_basic:
    board: nodemcuv2
    mixins:
    - kind: gpio_relay_switch
      name: test_switch
      pin: D3

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
esphome:
  board: nodemcuv2
  name: gpio_relay_switch_basic
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
switch:
- id: test_switch_switch
  name: test_switch_switch
  pin: D3
  platform: gpio

gpio_relay_switch_inverted

Source configuration:

1
2
3
4
5
6
7
8
device:
  gpio_relay_switch_inverted:
    board: nodemcuv2
    mixins:
    - inverted: true
      kind: gpio_relay_switch
      name: test_switch
      pin: D3

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
esphome:
  board: nodemcuv2
  name: gpio_relay_switch_inverted
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
switch:
- id: test_switch_switch
  name: test_switch_switch
  pin:
    inverted: 'yes'
    number: D3
  platform: gpio

GPIO l9110s Motor

_images/l9110s.png

Configuration parameters

  • name: (required) The name of the motor.
  • pin_a: (required)
  • pin_b: (required)

Sample configurations

gpio_l9110s_motor_basic

Source configuration:

1
2
3
4
5
6
7
8
9
device:
  gpio_l9110s_motor_basic:
    board: nodemcuv2
    mixins:
    - acw_pin: D2
      cw_pin: D3
      kind: gpio_l9110s_motor
      name: test_motor
      power_pin: D1

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
esphome:
  board: nodemcuv2
  name: gpio_l9110s_motor_basic
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
switch:
- id: test_motor_a
  name: test_motor_a
  pin: D2
  platform: gpio
- id: test_motor_b
  name: test_motor_b
  pin: D3
  platform: gpio

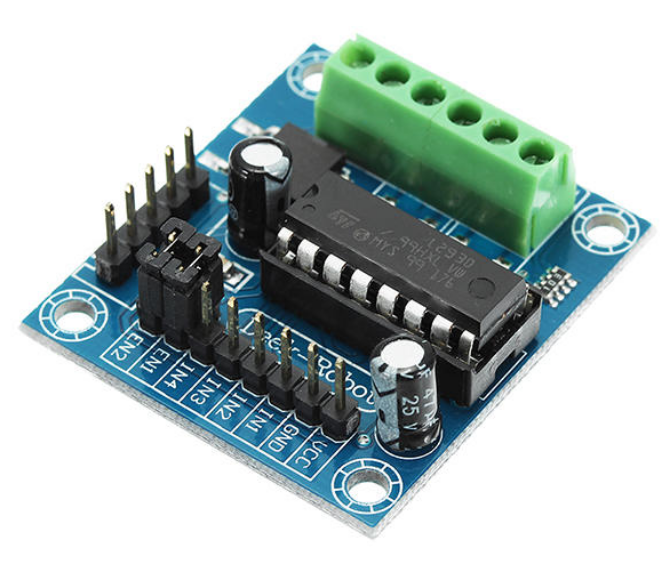

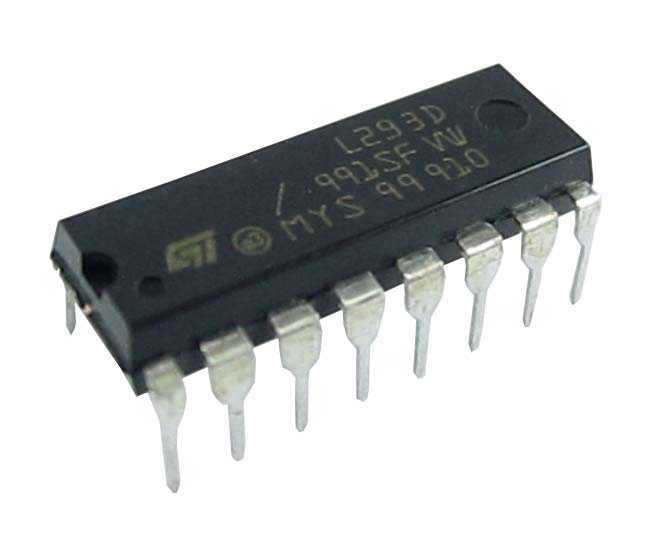

GPIO l293d Motor

_images/l293d.jpg _images/l293d.png

Configuration parameters

  • name: (required) The name of the motor.
  • power_pin: (required) L293D pin 1 or pin 9: On or off.
  • acw_pin: (required) L293D pin 2 or pin 10: Anticlockwise rotation.
  • cw_pin: (required) L293D pin 7 or pin 15: Clockwise rotation.

Sample configurations

gpio_l293d_motor_basic

Source configuration:

1
2
3
4
5
6
7
8
9
device:
  gpio_l293d_motor_basic:
    board: nodemcuv2
    mixins:
    - acw_pin: D2
      cw_pin: D3
      kind: gpio_l293d_motor
      name: test_motor
      power_pin: D1

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
esphome:
  board: nodemcuv2
  name: gpio_l293d_motor_basic
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
switch:
- id: test_motor_power
  name: test_motor_power
  pin: D1
  platform: gpio
- id: test_motor_acw_rotation
  name: test_motor_acw_rotation
  pin: D2
  platform: gpio
- id: test_motor_cw_rotation
  name: test_motor_cw_rotation
  pin: D3
  platform: gpio

GPIO Binary Fan

More information

Configuration parameters

  • name: (required) The name of the fan.

PWM Speed Fan

More information

Configuration parameters

  • name: (required) The name of the fan.

PWM Servo Motor

_images/sg90.jpg

Works with both continuous-rotation and absolute servos and has a similar interface to the Arduino Servo library. Please note the frequency of the output must be around 50Hz, as most servo controllers only operate in this frequency range.

Configuration parameters

  • name: (required) The name of the servo.
  • pin: (required) The pin to use PWM servo on.
  • frequency: (required) The frequency to run the PWM with. Lower frequencies have more visual artifacts, but can represent much more colors. Defaults to 50Hz for servo.

Sample configurations

gpio_pwm_servo_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  gpio_pwm_servo_basic_esp8266:
    board: nodemcuv2
    mixins:
    - kind: gpio_pwm_servo
      name: test_motor
      pin: D1
    networks:
    - api_password: api-pass
      essid: wlan-essid
      key: wlan-key

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
api:
  password: api-pass
  services:
  - service: set_angle_test_motor
    then:
    - lambda: 'id(test_motor).write(angle / 90.0);

        ESP_LOGD("api_set_angle_test_motor", "Set angle of servo test_motor");

        '
    variables:
      angle: float
  - service: detach_servo_test_motor
    then:
    - lambda: 'id(test_motor).detach();

        ESP_LOGD("api_detach_servo_test_motor", "Detached servo test_motor");

        '
esphome:
  board: nodemcuv2
  name: gpio_pwm_servo_basic_esp8266
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
output:
- frequency: 50Hz
  id: test_motor_output
  pin: D1
  platform: esp8266_pwm
servo:
- id: test_motor
  name: test_motor
  output: test_motor_output
wifi:
  domain: .local
  fast_connect: true
  networks:
  - password: wlan-key
    ssid: wlan-essid

PCA9685 Servo Motor

_images/sg90.jpg

Configuration parameters

  • name: (required) The name of the servo.
  • channel: (required) Chose the channel of the PCA9685. Must be in range from 0 to 15.
  • bus: ID of the PCA9685 hub. Use this if you have multiple PCA9685s you want to use at the same time.

Sample configurations

pca9685_servo_basic_esp8266

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
device:
  pca9685_servo_basic_esp8266:
    board: nodemcuv2
    mixins:
    - clock_pin: D1
      data_pin: D2
      kind: i2c_bus
      name: i2c_1
    - address: 64
      bus: i2c_1
      kind: pca9685_board
      name: pca_1
    - bus: pca_1
      channel: 0
      kind: pca9685_servo
      name: test_motor
    networks:
    - api_password: api-pass
      essid: wlan-essid
      key: wlan-key

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
api:
  password: api-pass
  services:
  - service: set_angle_test_motor
    then:
    - lambda: 'id(test_motor).write(angle / 90.0);

        ESP_LOGD("api_set_angle_test_motor", "Set angle of servo test_motor");

        '
    variables:
      angle: float
  - service: detach_servo_test_motor
    then:
    - lambda: 'id(test_motor).detach();

        ESP_LOGD("api_detach_servo_test_motor", "Detached servo test_motor");

        '
esphome:
  board: nodemcuv2
  name: pca9685_servo_basic_esp8266
  platform: ESP8266
i2c:
- id: i2c_1
  scan: true
  scl: D1
  sda: D2
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
output:
- channel: 0
  id: test_motor_output
  pca9685_id: pca_1
  platform: pca9685
pca9685:
- address: '0x40'
  frequency: 500
  id: pca_1
servo:
- id: test_motor
  name: test_motor
  output: test_motor_output
wifi:
  domain: .local
  fast_connect: true
  networks:
  - password: wlan-key
    ssid: wlan-essid

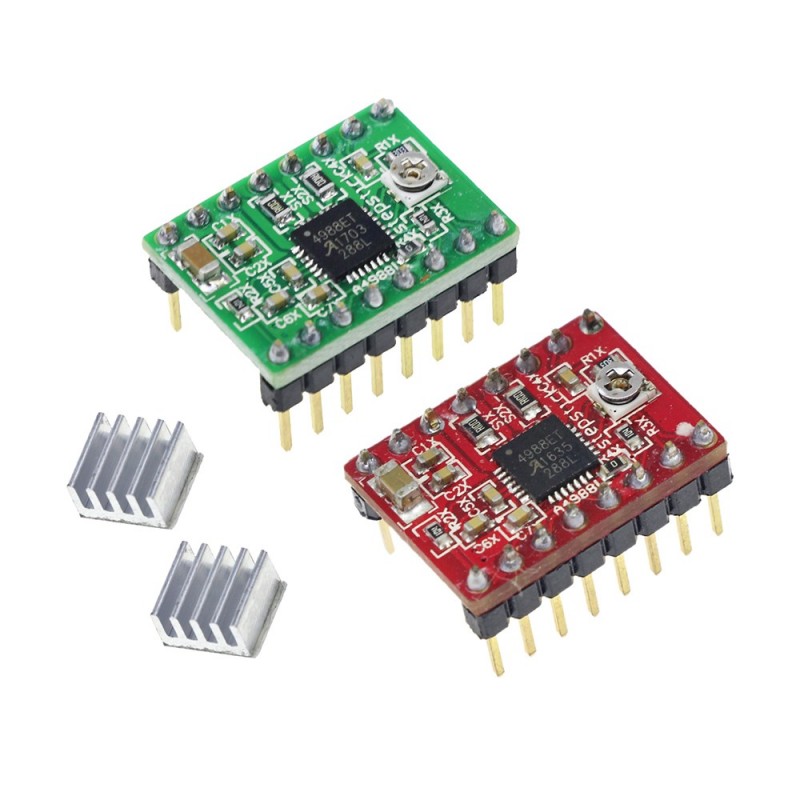

A4988 Stepper Motor

_images/a4988.jpg

Configuration parameters

  • name: (required) The name of the stepper motor.
  • step_pin: (required) The STEP pin of the A4988 stepper driver.
  • dir_pin: (required) The DIRECTION pin of the A4988 stepper driver.
  • max_speed: (required) The maximum speed in steps/s (steps per seconds) to drive the stepper at. Note most steppers can’t step properly with speeds higher than 250 steps/s.
  • sleep_pin: Optionally also use the SLEEP pin of the A4988 stepper driver. If specified, the driver will be put into sleep mode as soon as the stepper reaches the target steps.
  • acceleration: The acceleration in steps/s^2 (steps per seconds squared) to use when starting to move. The default is inf which means infinite acceleration, so the stepper will try to drive with the full speed immediately.
  • deceleration: The same as acceleration, but for when the motor is decelerating shortly before reaching the set position. Defaults to inf (immediate deceleration).

Sample configurations

a4988_stepper_basic

Source configuration:

1
2
3
4
5
6
7
8
9
device:
  a4988_stepper_basic:
    board: nodemcuv2
    mixins:
    - dir_pin: D1
      kind: a4988_stepper
      max_speed: 250
      name: test_motor
      step_pin: D0

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
esphome:
  board: nodemcuv2
  name: a4988_stepper_basic
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
stepper:
- dir_pin: D1
  id: test_motor
  max_speed: 250 steps/s
  platform: a4988
  step_pin: D0

uln2003_stepper_advanced

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
device:
  uln2003_stepper_advanced:
    board: nodemcuv2
    mixins:
    - acceleration: inf
      deceleration: inf
      dir_pin: D1
      kind: a4988_stepper
      max_speed: 250
      name: test_motor
      step_pin: D0

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
esphome:
  board: nodemcuv2
  name: uln2003_stepper_advanced
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
stepper:
- acceleration: inf
  deceleration: inf
  dir_pin: D1
  id: test_motor
  max_speed: 250 steps/s
  platform: a4988
  step_pin: D0

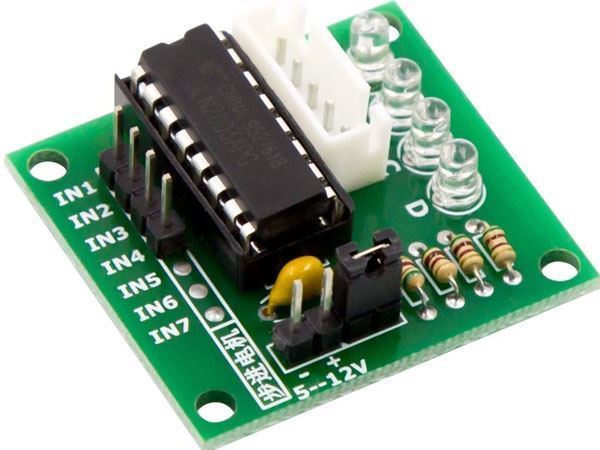

ULN2003 Stepper Motor

_images/uln2003.jpg

ULN2003 driver board 5-wire phase can ordinary uln2003 chip can also be connected as phase 2 can support development boards, straight plug, easy to use stepper motors used in the development board.

Configuration parameters

  • name: (required) The name of the stepper motor.
  • acceleration: The acceleration in steps/s^2 (steps per seconds squared) to use when starting to move. The default is inf which means infinite acceleration, so the stepper will try to drive with the full speed immediately.
  • deceleration: The same as acceleration, but for when the motor is decelerating shortly before reaching the set position. Defaults to inf (immediate deceleration).

Sample configurations

uln2003_stepper_advanced

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
device:
  uln2003_stepper_advanced:
    board: nodemcuv2
    mixins:
    - acceleration: inf
      deceleration: inf
      kind: uln2003_stepper
      max_speed: 250 steps/s
      name: test_motor
      pin_a: D0
      pin_b: D1
      pin_c: D2
      pin_d: D3

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
esphome:
  board: nodemcuv2
  name: uln2003_stepper_advanced
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
stepper:
- acceleration: inf
  deceleration: inf
  id: test_motor
  max_speed: 250 steps/s
  pin_a: D0
  pin_b: D1
  pin_c: D2
  pin_d: D3
  platform: uln2003

uln2003_stepper_basic

Source configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
device:
  uln2003_stepper_basic:
    board: nodemcuv2
    mixins:
    - kind: uln2003_stepper
      name: test_motor
      pin_a: D0
      pin_b: D1
      pin_c: D2
      pin_d: D3

The rendered configuration:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
esphome:
  board: nodemcuv2
  name: uln2003_stepper_basic
  platform: ESP8266
logger:
  esp8266_store_log_strings_in_flash: false
  level: DEBUG
stepper:
- id: test_motor
  max_speed: 250 steps/s
  pin_a: D0
  pin_b: D1
  pin_c: D2
  pin_d: D3
  platform: uln2003
